TM93A inverter – Av. 1.51 / Ind. 1.51

Name: TM93A inverter - Av. 1.51 / Ind. 1.51
SKU: TMC1013082B
Price: 3953.04 EUR
Availability: BackOrder

The original price was: €4.650,64.The current price is: €3.953,04. (VAT included)

-15% (savings 698 €)

Product available in 5 days

Additional information

COD	TMC1013082B
Categories	Twindisc/Technodrive
Tags	Technodrive / Twin Disc Products

Brand	TMC

Description

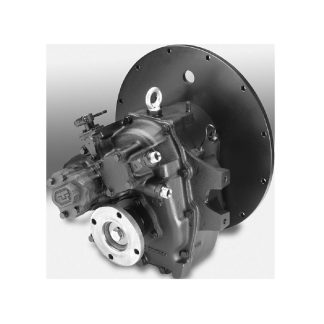

TM 93 A Hydraulic Marine Reverse Gear. Without motor coupling bell.
Gear ratio forward 1.51: 1 and reverse 1.51: 1.

The TM 93 A reverse gear has hydraulically operated multiple-disc clutches. The clutches and gears are sized to be able to transmit full power, with the same ratio, in both forward and reverse.

The 8° inclination of the output shaft allows for a favorable positioning of the reversing motor unit on planing and semi-planing boats.

Maximum application motor power (Kw):
Pleasure: 2600 rpm —-> 128 Kw / 3300 rpm —-> 162 Kw
Intermediate: 2100 rpm —-> 79 Kw / 2800 rpm —-> 106 Kw
Continuous: 1800 rpm —-> 47 Kw / 2400 rpm —-> 63 Kw

Maximum motor speed: 4500 rpm

Dry weight: 53 Kg
Oil quantity: 2.4 ltr

Optional (to be requested when confirming the order):
- SAE 3, SAE 4, BW bells
- Joints 10 "- 11.5"
- Control cable support bracket
- Exchanger
- Trolling valve
- Counter flange
- Electric selector

NOTES INSTALLER
Torsional incompatibility can cause damage to the gearbox components and even break them. When the engine is idling, this incompatibility can cause noise in the transmission. Technodrive is not responsible for noise or damage to the inverter, joint or other parts of the transmission caused by vibrations due to torsional incompatibility. Torsional compatibility analysis is the responsibility of the driveline assembler.

Attachments

TM 93 - 93A (1) .pdf (6994606)

Reviews

Still no reviews.

Only customers who have logged in and purchased this product can leave a review.

No matches to show

TM 93 A Hydraulic Marine Reverse Gear. Without motor coupling bell.
Gear ratio forward 1.51: 1 and reverse 1.51: 1

The TM 93 A reverse gear has hydraulically operated multiple-disc clutches. The clutches and gears are sized to be able to transmit full power, with the same ratio, in both forward and reverse.

The 8° inclination of the output shaft allows for a favorable positioning of the reversing motor unit on planing and semi-planing boats.
